LVA Log Splitter Control Valve

General Description

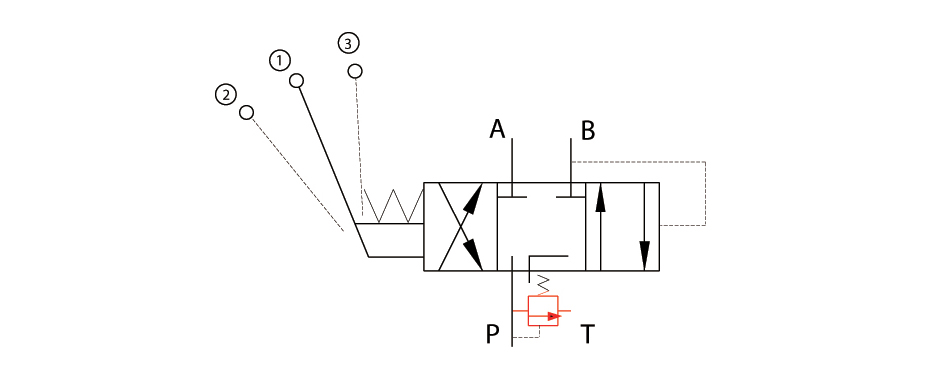

The LVA log splitter valve consists of a manually-operated 3 positions spool, a built-in relief valve and detent device with the spring centered function in one direction and pressure released detent function in the other direction. The detent device allows the spool automatically kick back to neutral position when cylinder completes stroke. The operating handle can be installed in up or down position upon request.
