Symbol

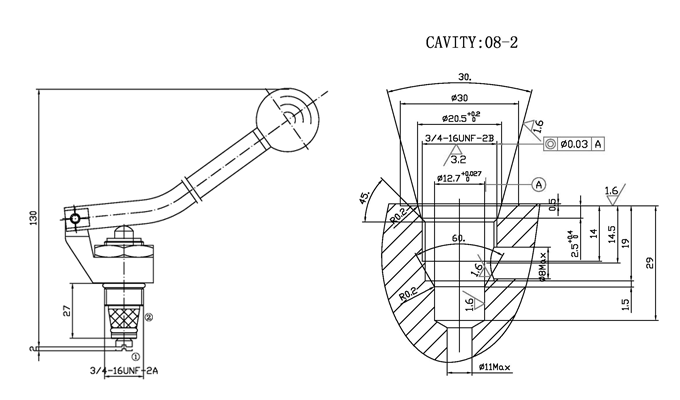

Outline Dimension
Operation
Technical data
Symbol
Outline Dimension
Operation
When the handle is pushed, the valve allows flow from ② to ①.
Technical data
Operating Pressure: 30MPa
Flow: 20L/min
Internal Leakage: ＜0.3ml/min
Temperature: -35℃ to +120℃
Order code: JHF-06-227-00
