In order to achieve high cost-effectiveness, longer service life as well as reduced energy consumption, efficient, coordinated hydraulic components are of crucial importance.
As a strong partner, Bucher Hydraulics can provide innovative and efficient electrohydraulic system solutions.
Advantages
Downloads
Downloads
Models
Applications
Advantages
- Savings potential for battery and operating costs due to the reduced energy demand of fine-tuned hydraulic systems
- New application possibilities thanks to reduced noise emissions
- Greater range and longer operating times with the same battery size
- High energy efficiency and durability serve as a basis for successful electrification
Downloads
| Type | Operating pressure (continuous) up to bar | Operating pressure (intermittend) up to bar | Displacement cm³/rev | Speed max. rpm |
|---|---|---|---|---|
| QX2… | 100-320 | 125-400 | 3-16 | 3600 |
| QX3… | 100-360 | 125-400 | 10-32 | 3400 |
| QX4… | 100-360 | 125-400 | 20-63 | 3200 |
| QX5… | 100-340 | 125-400 | 40-100 | 3000 |
| QX6… | 100-330 | 125-400 | 80-250 | 2500 |
| QX8… | 100-330 | 125-400 | 160-450 | 1800 |
Downloads
Elektrifizierung-mobiler-Maschinen 300-FL-9010633-en | Flyer | PDF | 6.6 MB
Technical Article Electrification 100-en | PDF | 3.6 MB
Models
HELAX – the solution for decentralized drive concepts with high efficiency

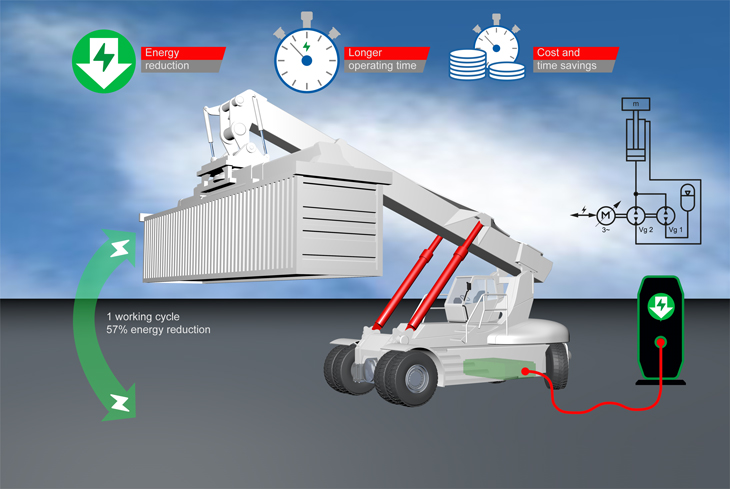

Massive energy savings thanks to recuperation with AX piston pump
Savings potential resulting from:- Simple recuperation of energy while lowering due to innovative system architecture
- Highly efficient AX pump
- Reduction of the required battery energy
- Longer operational availability without battery charging
Applications
- Electric mobile machines
- Municipal equipment
- Earth moving machines
- Construction machinery
- Material handling machines
- Fork lift trucks
- Etc.
